CoolerMaster Q300L MasterBox Transparent Acrylic Side Panel Micro ATX Tower

SKU #: CASE-CM-MCB-Q300L-KANN-S00

Price/ea

$99.99

Product Image Gallery

Model Number	MCB-Q300L-KANN-S00
Series	MasterBox Series
Size	Mini Tower
Color	Black
Materials	Steel, Plastic
Dimensions (L x W x H)	387 x 230 x 381mm
Motherboard Support	Micro ATX, Mini ITX
Expansion Slots	4
Bays	0 x 5.25" Drive Bays 1 x 3.5" Drive Bays 3 x 2.5" Drive Bays
I/O Panel	2x USB 3.0, Audio In & Out (Supports HD Audio)
Pre-installed Fans - Rear	1 x 120mm
Fan Support - Front	2 x 120/140mm
Fan Support - Top	2 x 120mm
Fan Support - Rear	1 x 120mm
Radiator Support - Front	120mm, 240mm
Radiator Support	Rear 120mm
Clearance	CPU Cooler 159mm
Clearance	GFX 360mm
Power Supply Support	Bottom Mount, ATX PS2 / EPS 12V
Dust Filters	Top, Front, Bottom
Product Sheet	View Product Sheet

I/O panel can be adjusted in 6 different locations and the Case can be positioned: vertical or horizontal

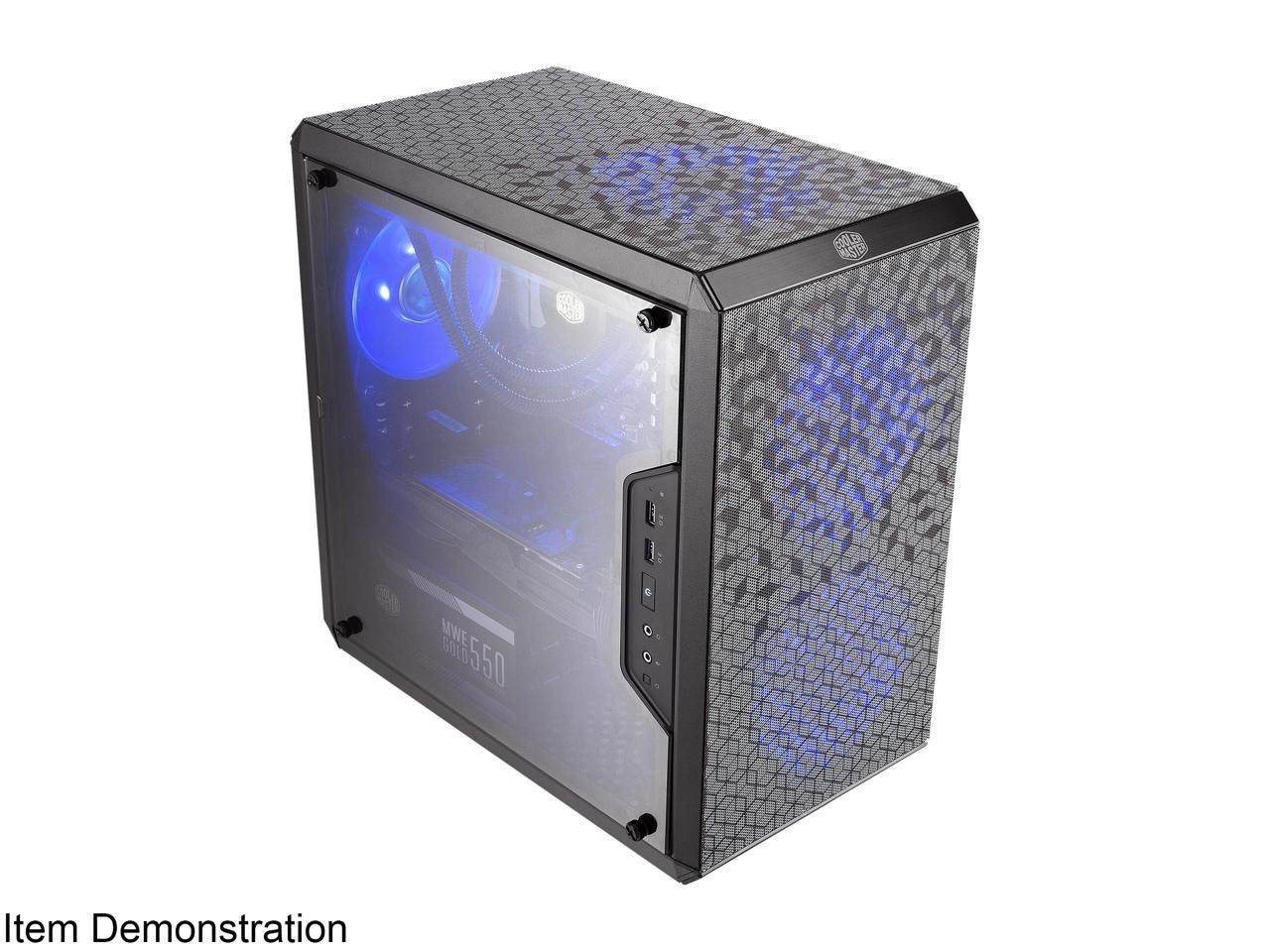

Edge to Edge Acrylic Transparent Side Panel offers a full view inside; CLEARANCE - CPU COOLER: 159mm/6.2"
Body depth height: can support normal size ATX power supply. Filter Type: Patterned
Front Magnetic Design Dust Filter with open perforated front, top and bottom for high air performance
Extra space behind the motherboard tray for hidden cable management
Fan and Radiator Support: The front supports up to two 140mm fans and up to a 240mm radiator. The rear supports a 120mm fan or radiator and the top two 120mm fans. All to ensure you don't have to compromise on performance
The MasterBox Q300L case supports CPU coolers up to a height of 159mm, graphics cards up to a length of 360mm, and power supplies up to a length of 160mm. Clearance - GFX: 360mm
